Epoxy Coated Mesh

Large inventory, support customization

Epoxy mesh is made by Plain Steel Mesh, Al alloy mesh or SS wire mesh with electrostatic powder spraying, mainly used as support layer of hydraulic and air filters as well as doors, windows guarding, with strong corrosion resistance and acid-base resistance.

Description

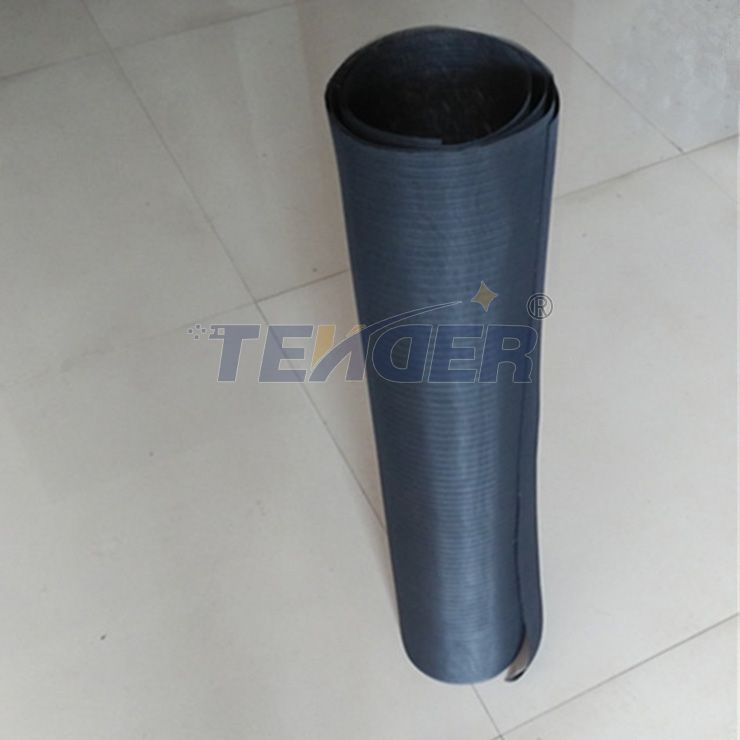

Epoxy Coated Wire Mesh

Description

Epoxy coated wire mesh is mainly made of plain steel cable woven and covered with first class epoxy resin powder by electrostatic spraying process, which makes this material immune to corrosion and acids. Epoxy coated wire mesh is generally used as an auxiliary layer for decontamination rather than galvanized cable mesh. It is ideal due to the stability of the structure and the economic situation. It is used for almost all filters.


Base material

Mild steel / common steel wire / aluminum wire / stainless steel wire, epoxy powder


Colors

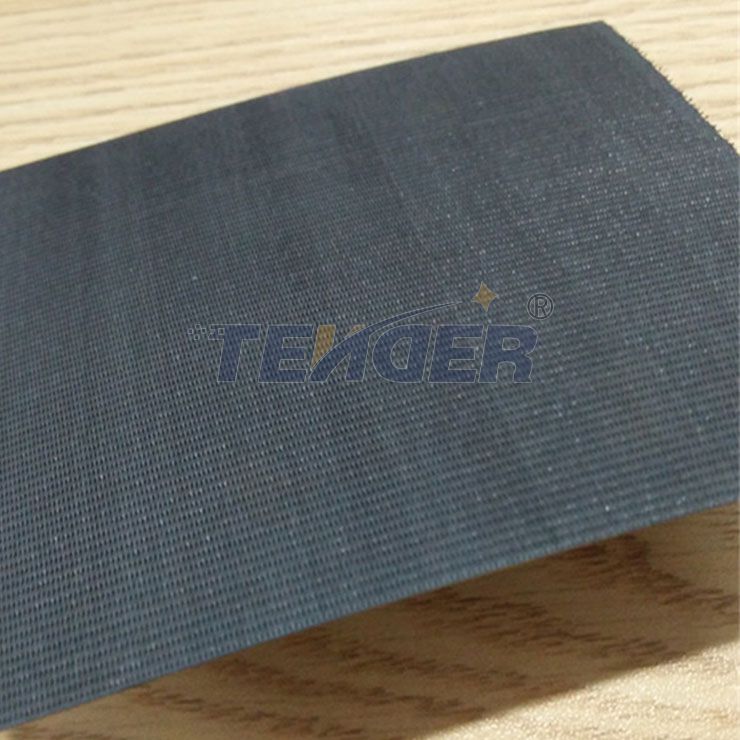

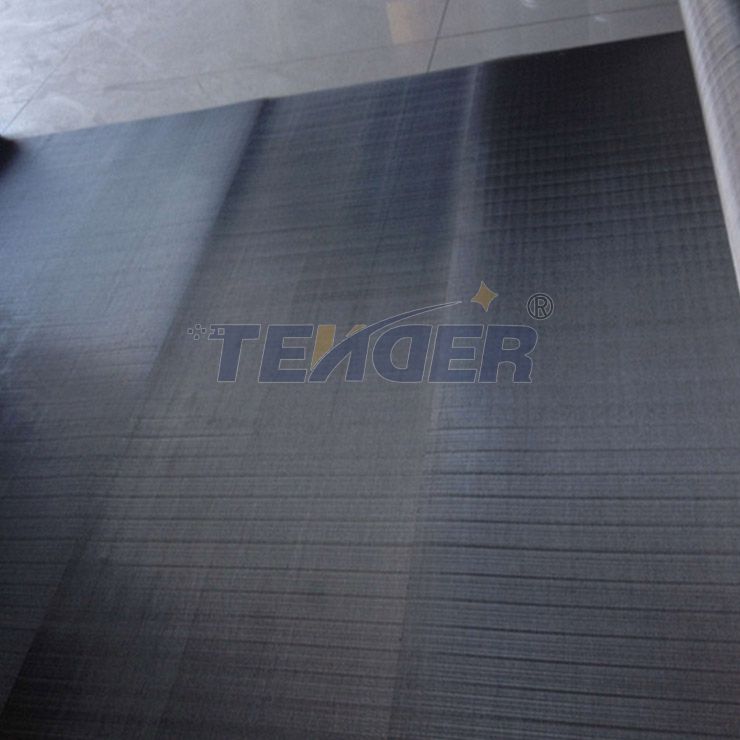

Dark gray and black epoxy coating as standard, other colors can be customized, such as gray, white, blue, etc.


Features


Lightweight


Epoxy coating makes it rust and corrosion resistant


Stable mesh structure and easy pleating


Highly compatible with different types of corrosive fluids


Resilient under high temperature and pressure


Easy to clean and tidy


Applications

Epoxy coated wire mesh is commonly used in different filtration applications as an auxiliary layer for hydraulic and air filters, producing a certain good pleating effect, providing maximum air flow and peak filtration.


When epoxy coated wire mesh is used as an epoxy coated filter cable mesh, it is used as a hydraulic filter as well as an air filtration auxiliary layer to support filter paper or non-woven fabric for filtering drill bits debris and rubber impurities from the system to ensure certain hydraulic system as well as air filtration system cleanliness.


Epoxy coated wire mesh is also used as an insect-proof line for windows and doors. It is widely used to resist insects such as flies, insects and bed bugs in hotels, buildings and homes.


For more information on epoxy coated wire mesh applications,please click here!

Specifications

The Main Specifications
MeshWire DiameterWidthLength
14x14BWG31/320.6 - 1.5 m100-1000LF
16x14BWG31/320.6 - 1.5 m100-1000LF
16x16BWG31/320.6 - 1.5 m100-1000LF
18x14BWG31/320.6 - 1.5 m100-1000LF
18x16BWG31/320.6 - 1.5 m100-1000LF
18x18BWG31/320.6 - 1.5 m100-1000LF
20x20BWG32/330.6 - 1.5 m100-1000LF
22x22BWG32/330.6 - 1.5 m100-1000LF
28x28BWG33/340.6 - 1.5 m100-1000LF
30x30BWG33/340.6 - 1.5 m100-1000LF


Company advantage: large inventory, can be delivered at any time, support special specifications special customization

Specification parameter

Material: Epoxy coated wire mesh is made by coating the epoxy powder on the surface of stainless steel wire mesh, low carbon wire mesh or aluminum alloy mesh.

Width: 6mm-13000mm

Length: 15.25ft.-1000ft.

Commonly used specifications: 12x10, 16x14, 18x14 and 18x16 mesh. We can also do the other specifications according to customers' requirements.
